제품소개

Product

제노스의 모든 제품은 ISO 국제표준규격 기반의
체계적이고 철저한 품질관리시스템에 따라 제조됩니다.

추간체고정재

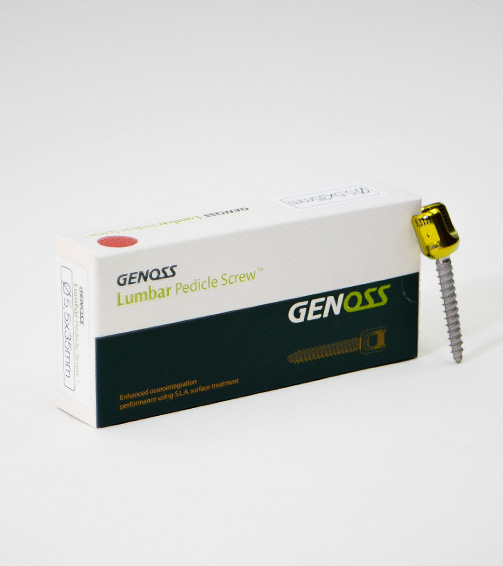

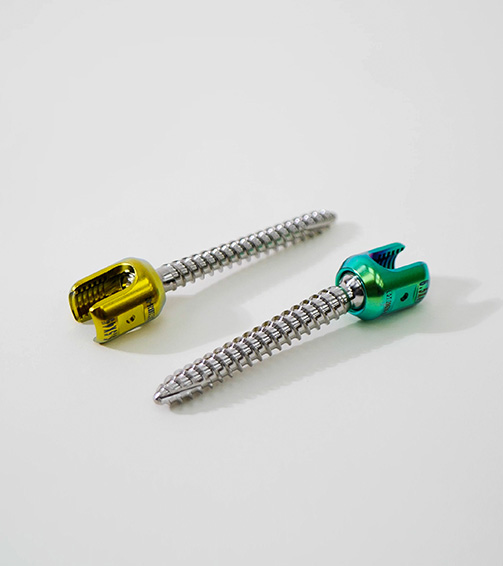

GENOSS™ Lumbar Pedicle Screw
설명
- 척추의 뼈 이식 또는 척추 이탈 및 만곡증의 고정, 척추유합술에 사용
- Titanium alloy 소재를 이용하여 가공한 제품
상세정보

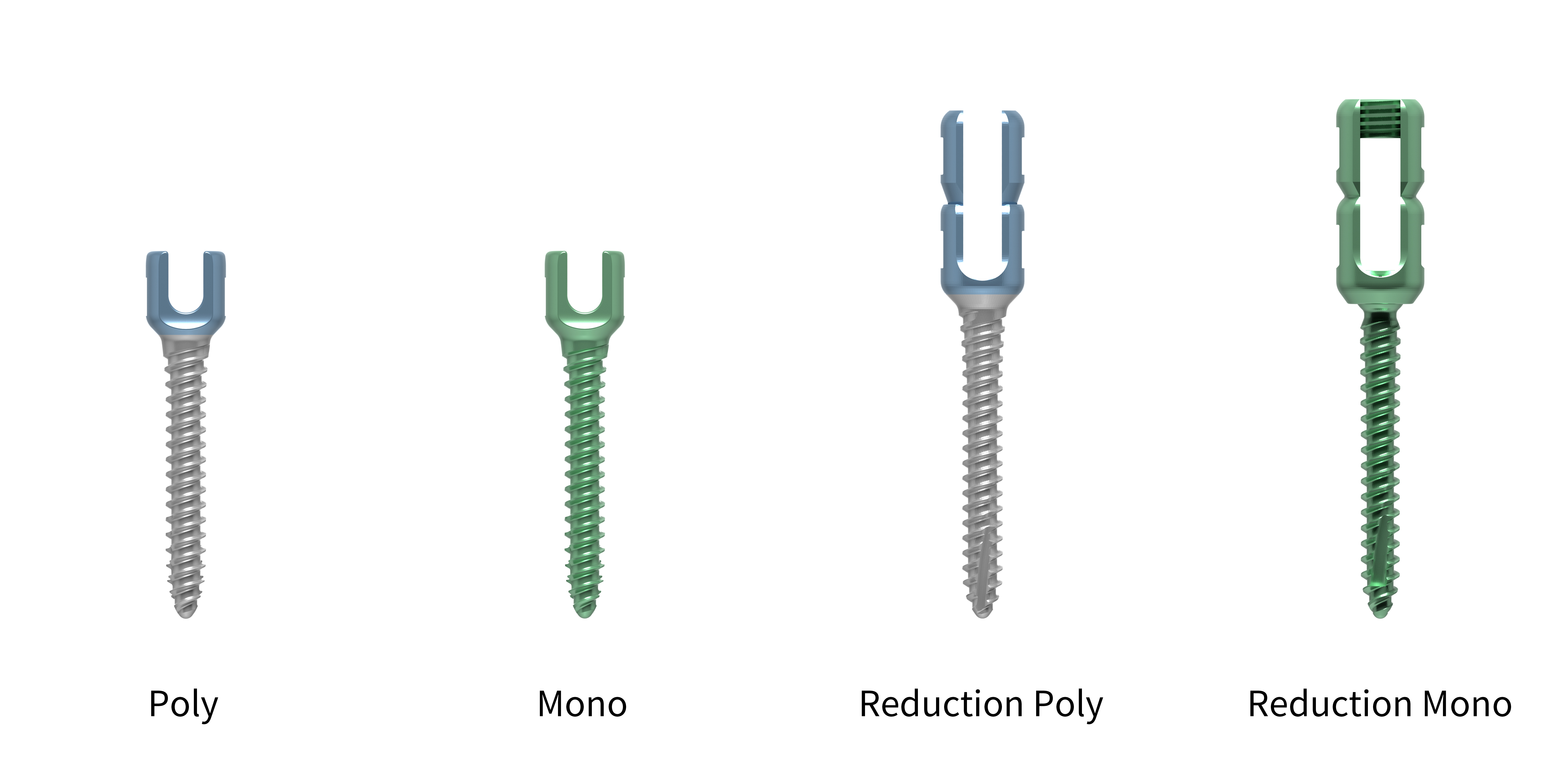

Pedicle Screw Type
사용목적
Lumbar Pedicle Screw는 척추의 고정, 지지 또는 얼라이먼트 보정에 사용되는 추간체고정재이다.

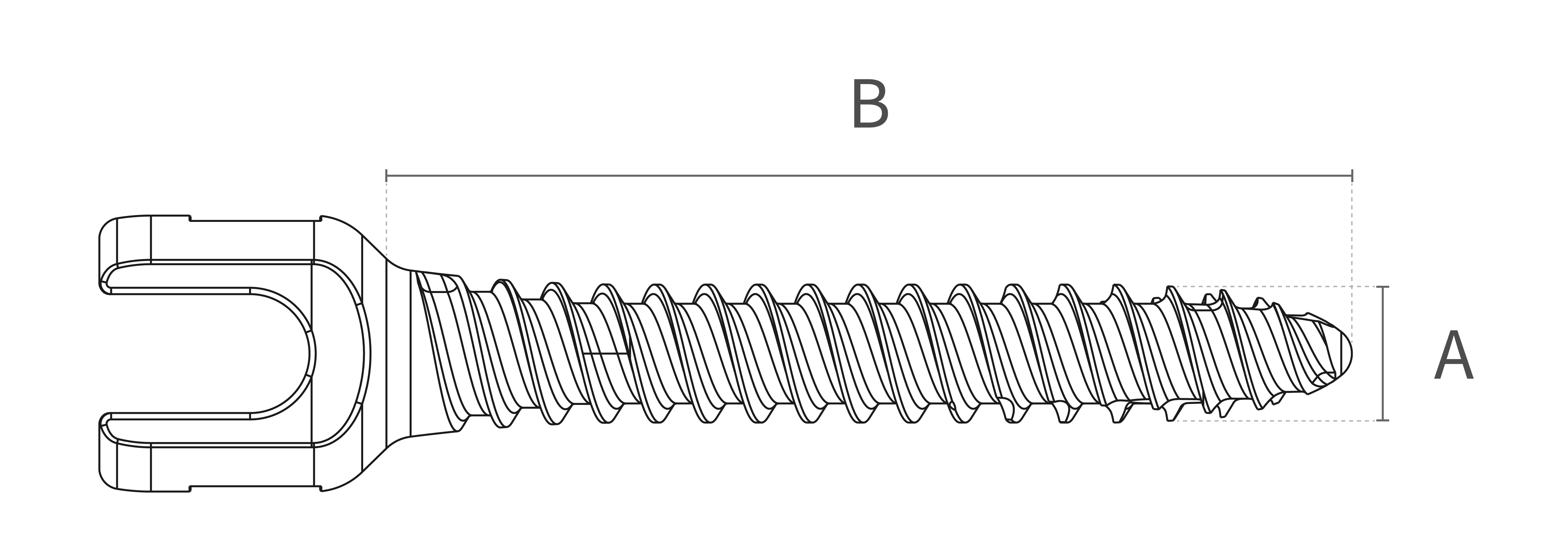

모델명 치수 (mm) 모델명 치수 (mm) 모델명 치수 (mm)
A (Ø) B (mm) A (Ø) B (mm) A (Ø) B (mm)
LSP/M 4025 W/N/A 4.0 25 LSP/M 5540 W/N/A 5.5 40 LSP/M 7040 W/N/A 7.0 40
LSP/M 4030 W/N/A 4.0 30 LSP/M 5545 W/N/A 5.5 45 LSP/M 7045 W/N/A 7.0 45
LSP/M 4035 W/N/A 4.0 35 LSP/M 5550 W/N/A 5.5 50 LSP/M 7050 W/N/A 7.0 50
LSP/M 4040 W/N/A 4.0 40 LSP/M 5555 W/N/A 5.5 55 LSP/M 7055 W/N/A 7.0 55
LSP/M 4045 W/N/A 4.0 45 LSP/M 5560 W/N/A 5.5 60 LSP/M 7060 W/N/A 7.0 60
LSP/M 4050 W/N/A 4.0 50 LSP/M 5565 W/N/A 5.5 65 LSP/M 7065 W/N/A 7.0 65
LSP/M 4530 W/N/A 4.5 30 LSP/M 6030 W/N/A 6.0 30 LSP/M 7530 W/N/A 7.5 30
LSP/M 4535 W/N/A 4.5 35 LSP/M 6035 W/N/A 6.0 35 LSP/M 7535 W/N/A 7.5 35
LSP/M 4540 W/N/A 4.5 40 LSP/M 6040 W/N/A 6.0 40 LSP/M 7540 W/N/A 7.5 40
LSP/M 4545 W/N/A 4.5 45 LSP/M 6045 W/N/A 6.0 45 LSP/M 7545 W/N/A 7.5 45
LSP/M 4550 W/N/A 4.5 50 LSP/M 6050 W/N/A 6.0 50 LSP/M 7550 W/N/A 7.5 50
LSP/M 4555 W/N/A 4.5 55 LSP/M 6055 W/N/A 6.0 55 LSP/M 7555 W/N/A 7.5 55
LSP/M 4560 W/N/A 4.5 60 LSP/M 6060 W/N/A 6.0 60 LSP/M 7560 W/N/A 7.5 60
LSP/M 4565 W/N/A 4.5 65 LSP/M 6065 W/N/A 6.0 65 LSP/M 7565 W/N/A 7.5 65
LSP/M 5030 W/N/A 5.0 30 LSP/M 6530 W/N/A 6.5 30 LSP/M 8030 W/N/A 8.0 30
LSP/M 5035 W/N/A 5.0 35 LSP/M 6535 W/N/A 6.5 35 LSP/M 8035 W/N/A 8.0 35
LSP/M 5040 W/N/A 5.0 40 LSP/M 6540 W/N/A 6.5 40 LSP/M 8040 W/N/A 8.0 40
LSP/M 5045 W/N/A 5.0 45 LSP/M 6545 W/N/A 6.5 45 LSP/M 8045 W/N/A 8.0 45
LSP/M 5050 W/N/A 5.0 50 LSP/M 6550 W/N/A 6.5 50 LSP/M 8050 W/N/A 8.0 50
LSP/M 5055 W/N/A 5.0 55 LSP/M 6555 W/N/A 6.5 55 LSP/M 8055 W/N/A 8.0 55
LSP/M 5060 W/N/A 5.0 60 LSP/M 6560 W/N/A 6.5 60 LSP/M 8060 W/N/A 8.0 60
LSP/M 5065 W/N/A 5.0 65 LSP/M 6565 W/N/A 6.5 65 LSP/M 8065 W/N/A 8.0 65
LSP/M 5530 W/N/A 5.0 30 LSP/M 7030 W/N/A 7.0 30 LSP/M 8070 W/N/A 8.0 70
LSP/M 5535 W/N/A 5.5 35 LSP/M 7035 W/N/A 7.0 35 LSP/M 8075 W/N/A 8.0 75
