Trauma Devices

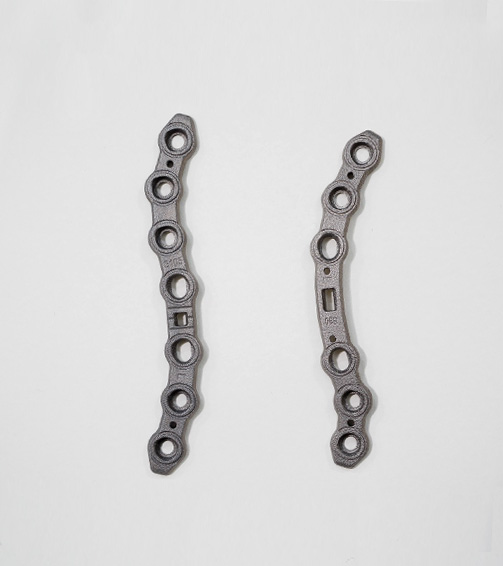

SLIM Clavicle Plate
설명
- 쇄골의 외과적 치료 중, 내고정술에 사용되는 골절합용판
- Titanium을 이용한 3D Printing 기술로 제조
- 별도의 허가제품 Clavicle Screw 와 함께 사용
상세정보
Shape and Structure
Plate
- 3D Printed Conventional Clavicle Plates
- Anatomically Pre-Contoured
- Low Profile Plates, Thickness 2.4㎜, Narrow Width 8.0㎜

Screw
- Applied T15 Hexalobe Connection
- Locking/Non-Locking Screw(Ø3.5㎜, Ø 2.7㎜), Compression Screw(Ø3.5㎜)
Model Name
SLIM Clavicle Plate

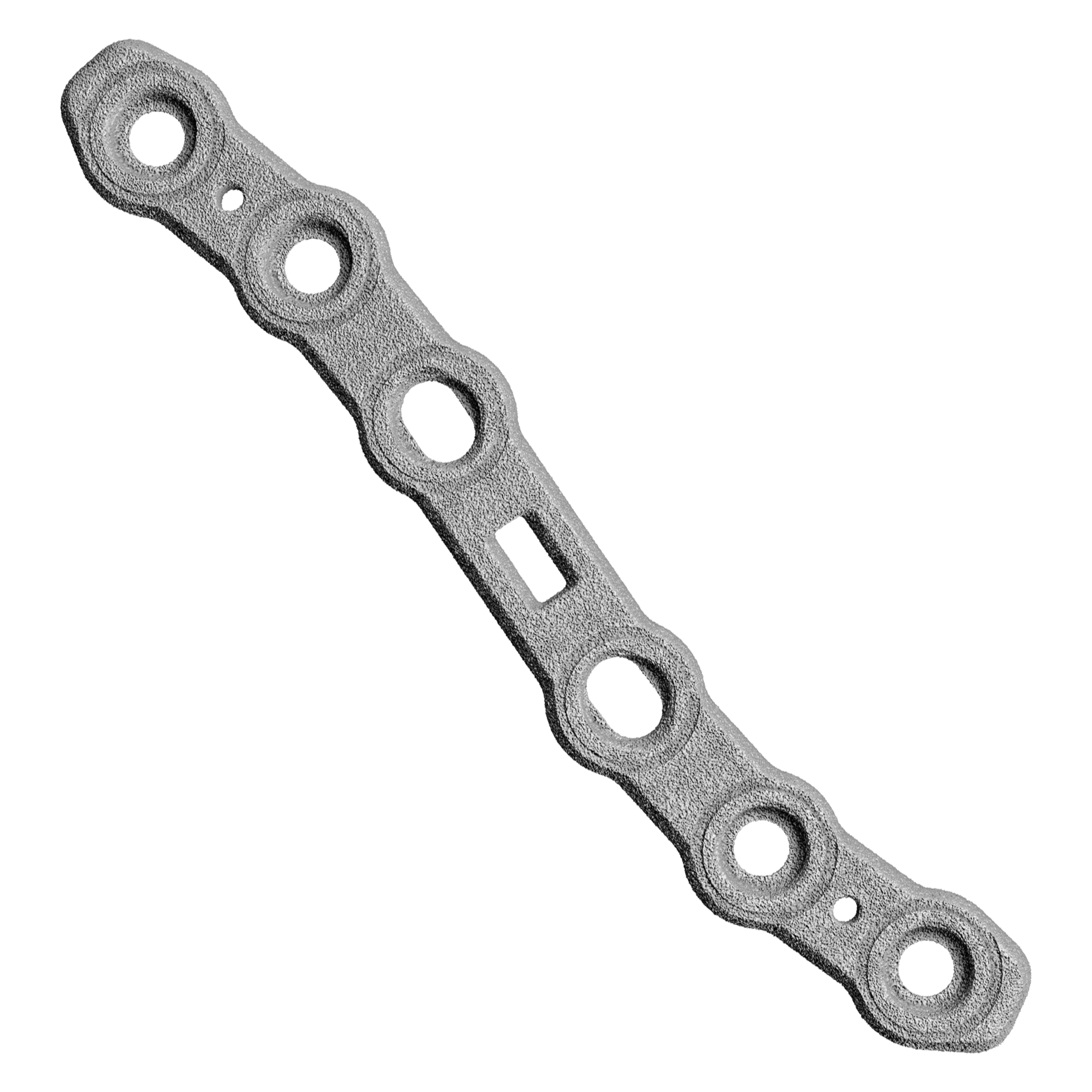

Superior Plate
Art No. Dimension (mm) Image
L T W R/L
TCP SP 111 R 90.0 2.8 11.0 R
TCP SP 114 R 105.0
TCP SP 117 R 120.0
TCP SP 111 L 90.0 L
TCP SP 114 L 105.0
TCP SP 117 L 120.0

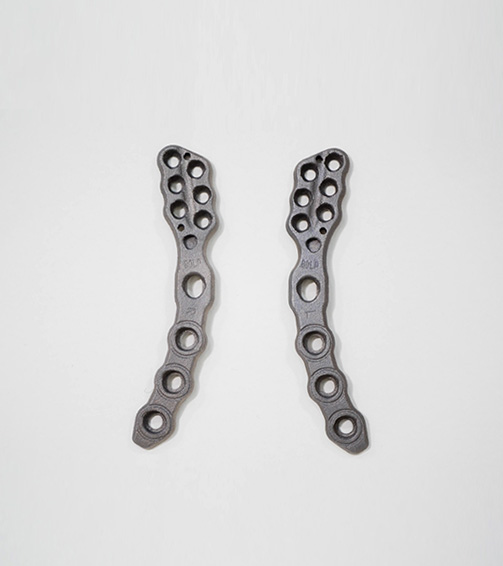

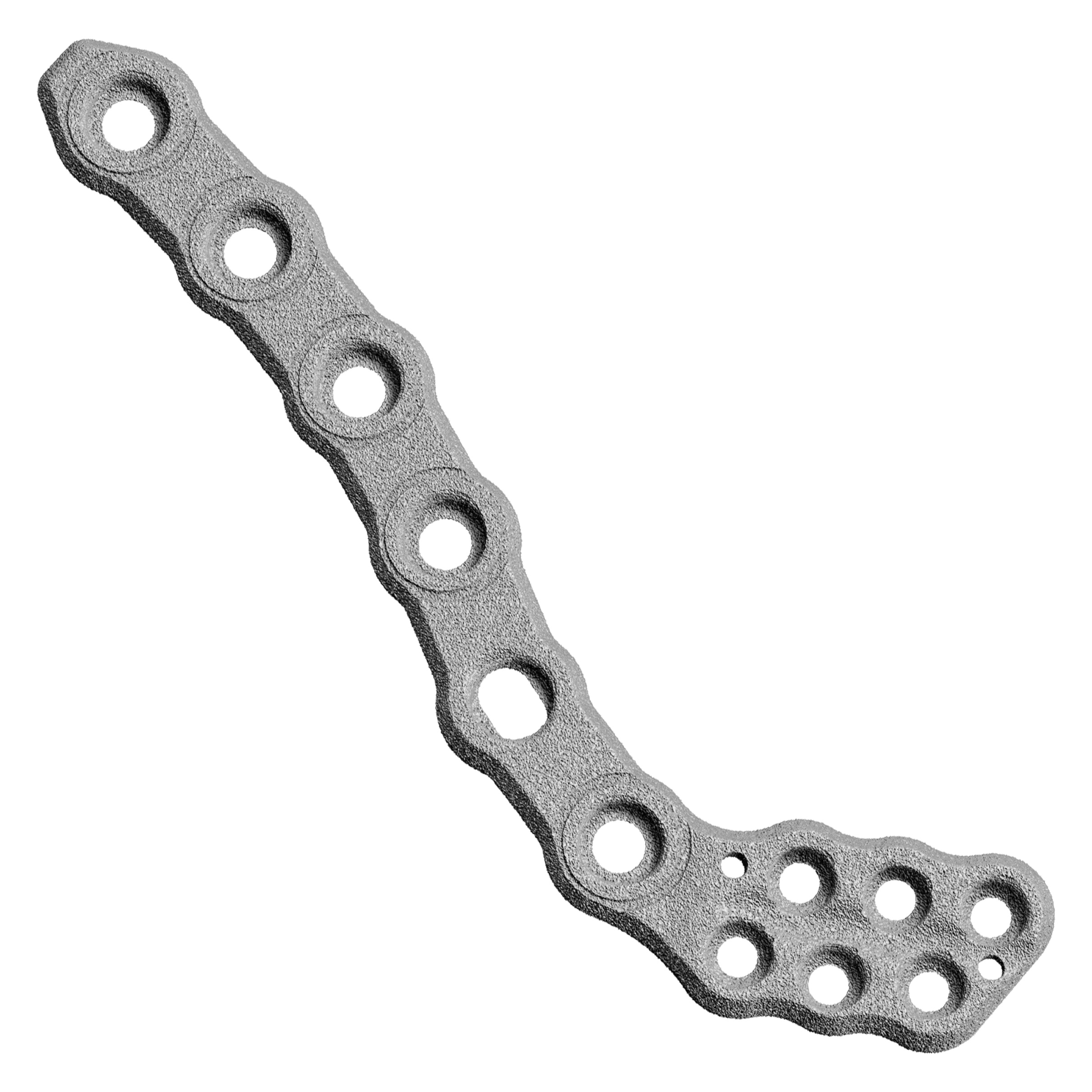

Lateral Plate
Art No. Dimension (mm) Image
L T W R/L
TCP LP 106 R 65.0 2.8 11.0 R
TCP LP 109 R 80.0
TCP LP 112 R 95.0
TCP LP 106 L 65.0 L
TCP LP 109 L 80.0
TCP LP 112 L 95.0

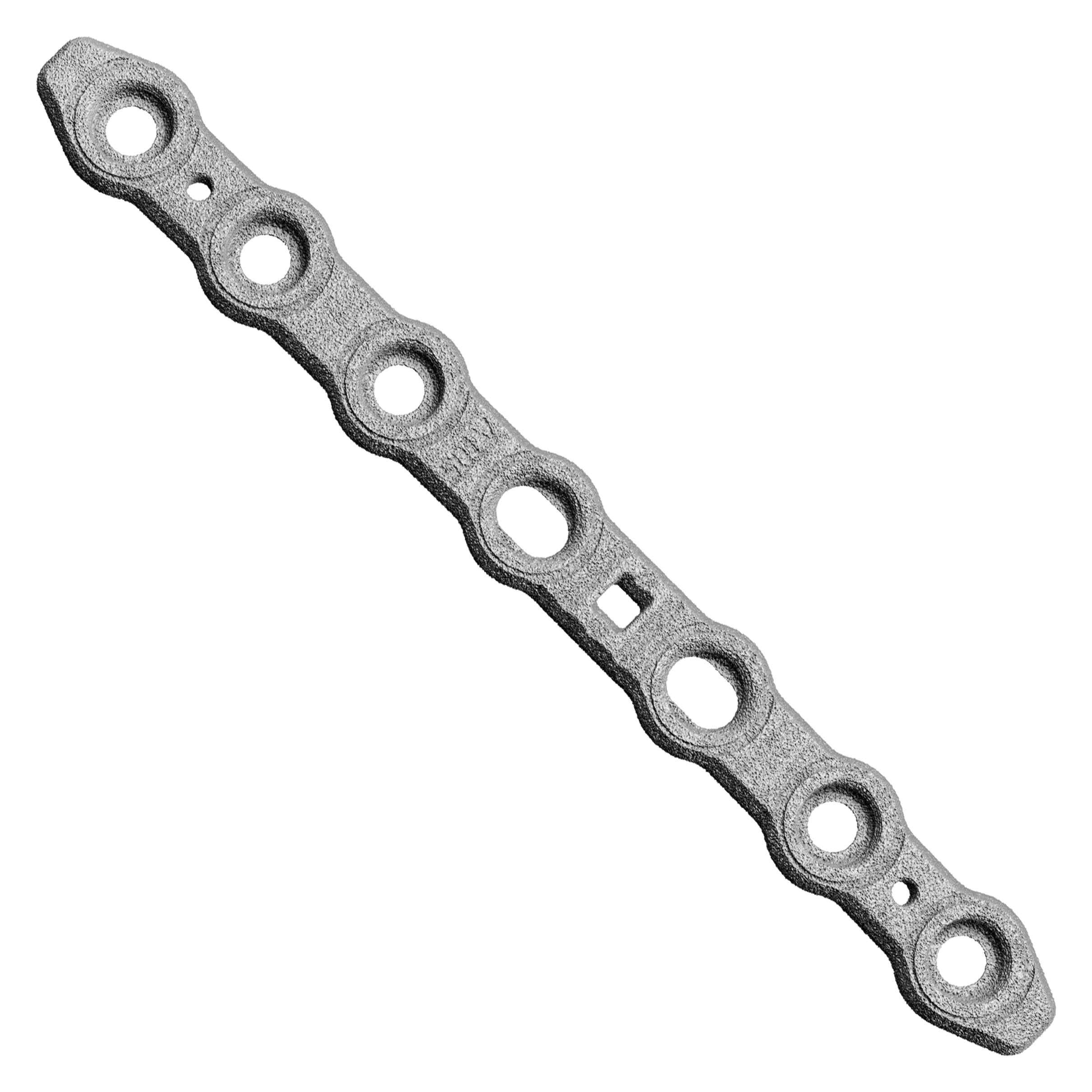

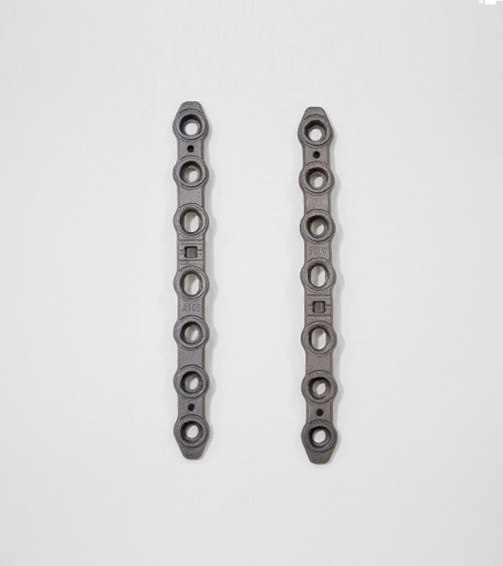

Anterior Plate
Art No. Dimension (mm) Image
L T W R/L
TCP AP 066 90.0 2.8 11.0 -
TCP AP 069 105.0
TCP AP 072 120.0

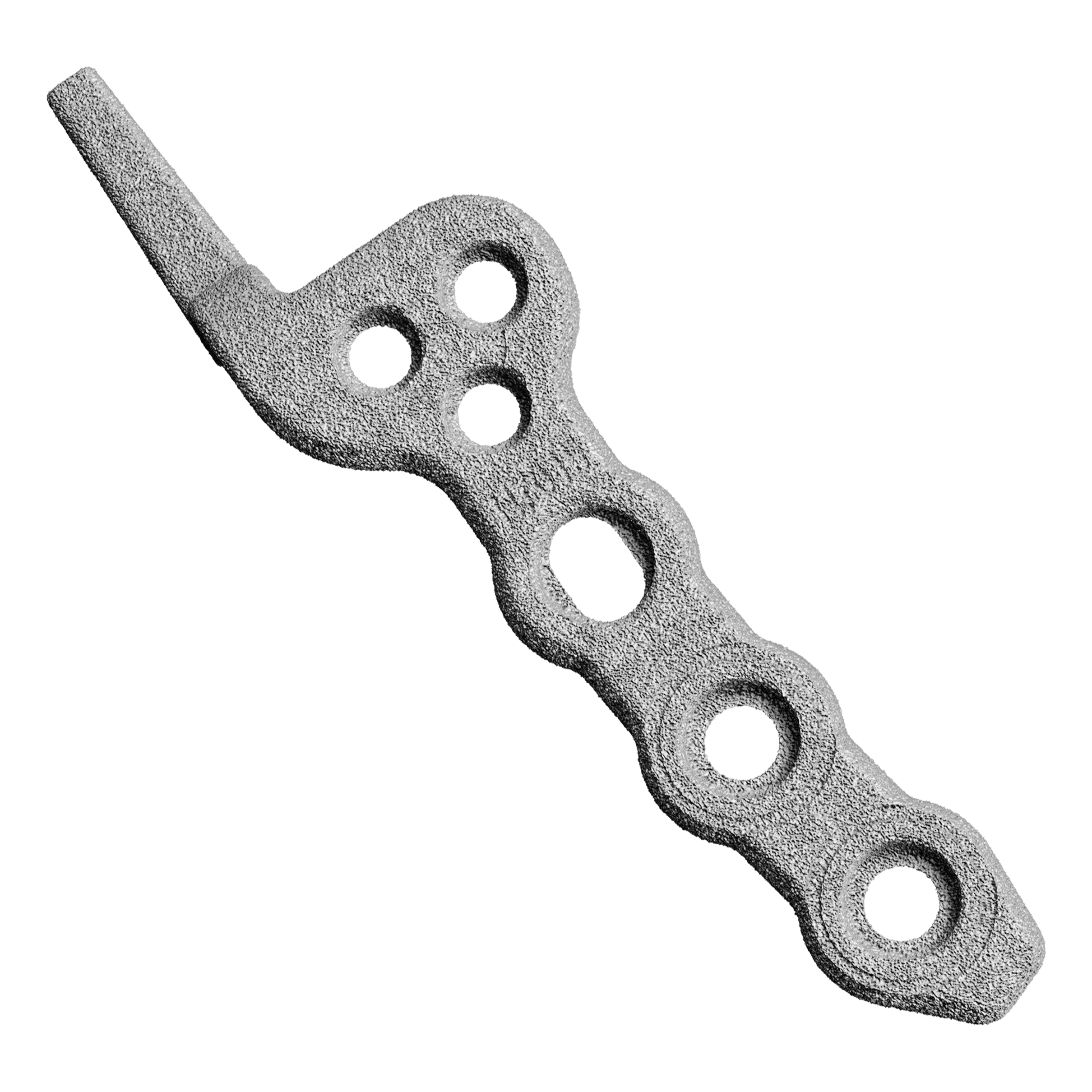

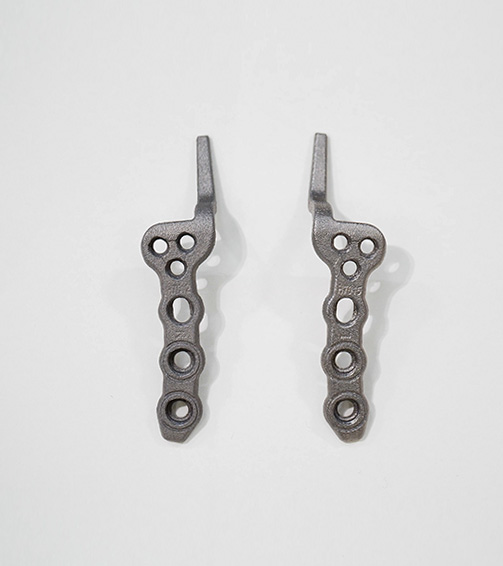

Hook Plate
Art No. Dimension (mm) Image
L T Hook Depth R/L
TCP HP 012 R 70.0 2.8 12 R
TCP HP 042 R 15
TCP HP 072 R 18
TCP HP 012 L 70.0 12 L
TCP HP 042 L 15
TCP HP 072 L 18
T15 Clavicle Bone Screw

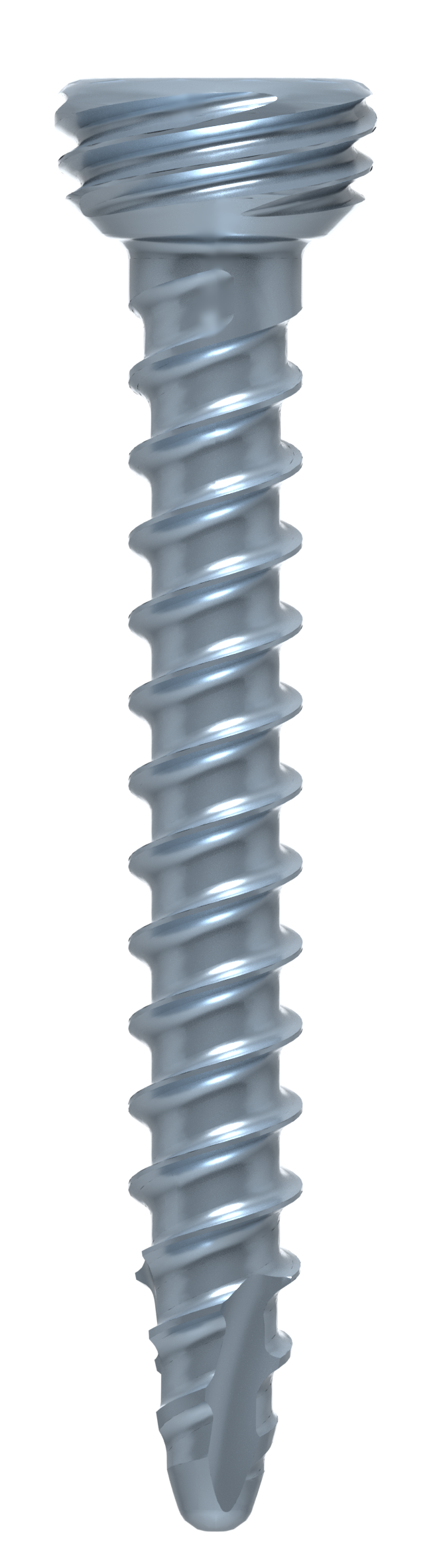

Locking Screw(Ø 2.7㎜, Ø3.5㎜)
Art No. Dimension (mm) Image
L ØD
SCS LS 2710 10.0 Ø2.7
SCS LS 2712 12.0
SCS LS 2714 14.0
SCS LS 2716 16.0
SCS LS 2718 18.0
SCS LS 2720 20.0

Art No. Dimension (mm) Image
L ØD

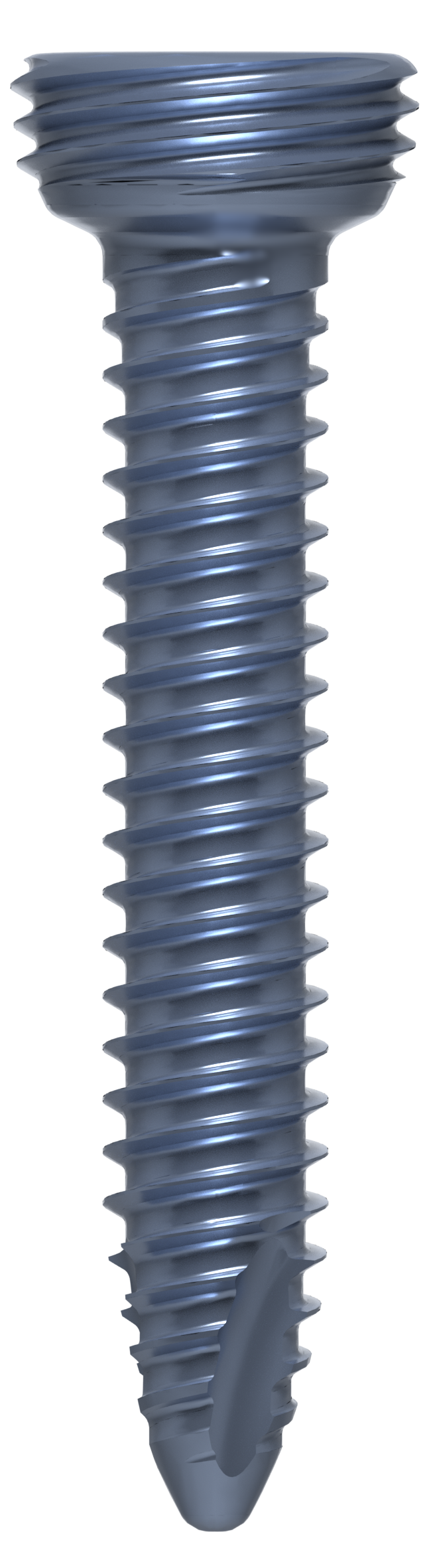

SCS LS 3510P 10.0 Ø3.5
SCS LS 3512P 12.0
SCS LS 3514P 14.0
SCS LS 3516P 16.0
SCS LS 3518P 18.0
SCS LS 3520P 20.0
SCS LS 3522P 22.0
SCS LS 3524P 24.0

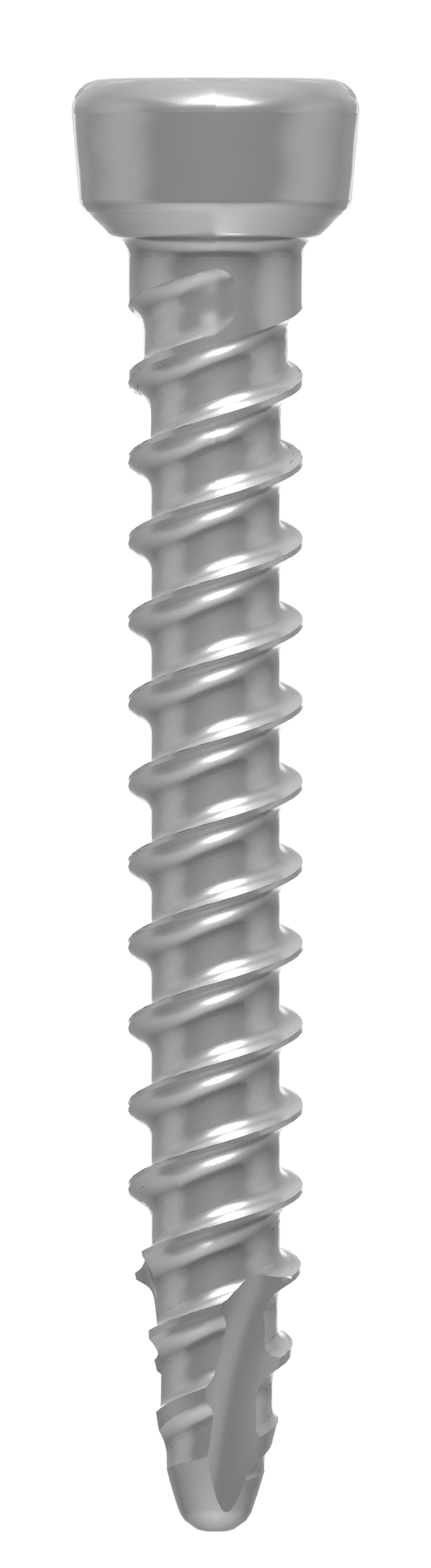

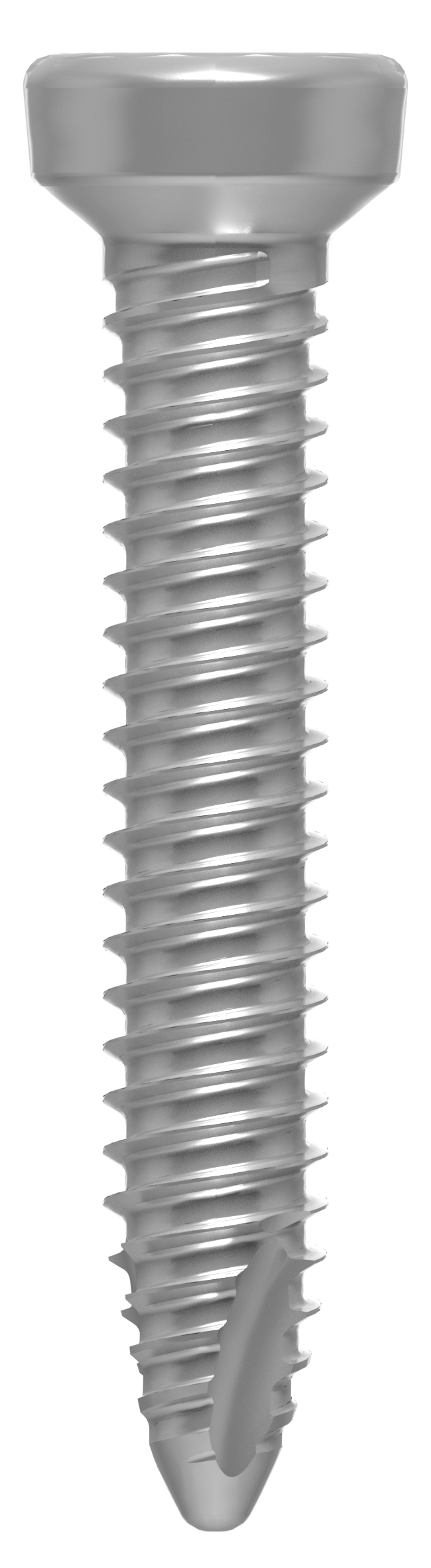

Non-Locking Screw(Ø 2.7㎜, Ø3.5㎜)
Art No. Dimension (mm) Image
L ØD
SCS NS 2710 10.0 Ø2.7
SCS NS 2712 12.0
SCS NS 2714 14.0
SCS NS 2716 16.0
SCS NS 2718 18.0
SCS NS 2720 20.0

Art No. Dimension (mm) Image
L ØD
SCS NS 3510P 10.0 Ø3.5
SCS NS 3512P 12.0
SCS NS 3514P 14.0
SCS NS 3516P 16.0
SCS NS 3518P 18.0
SCS NS 3520P 20.0
SCS NS 3522P 22.0
SCS NS 3524P 24.0
Clavicle Bone Screw (T15 Hexalobe)

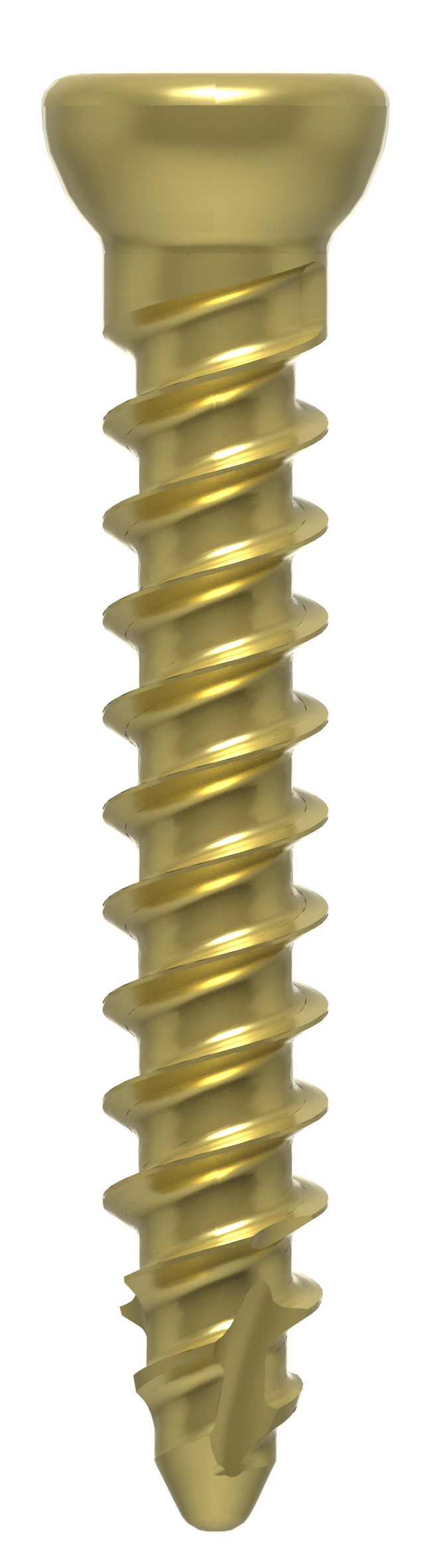

Compression Screw(Ø3.5㎜)
Art No. Dimension (mm) Image
L ØD
SCS CS 3510P 10.0 Ø3.5
SCS CS 3512P 12.0
SCS CS 3514P 14.0
SCS CS 3516P 16.0
SCS CS 3518P 18.0
SCS CS 3520P 20.0
SCS CS 3522P 22.0
SCS CS 3524P 24.0
